XC9001
Raspberry Pi Compatible
Bluetooth® Compatible
USB 2.0
Wi-Fi Compatible

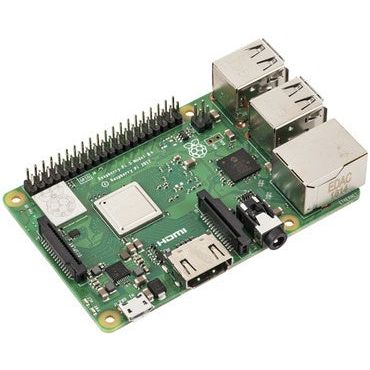

The Raspberry Pi 3B+ is a single board computer about the size of a credit card. It can run Raspbian or Ubuntu Linux, Windows 10 IoT core or even a dedicated media centre OS. Use it to start learning about Linux or IoT.
The bank of GPIO pins allows you to interact with the real world using Scratch or Python. It's even possible to connect an Arduino board to the Raspberry Pi 3B+, or even connect Arduino modules to the GPIO pins. You could use our huge range of duinotech modules to turn your Raspberry Pi 3B+ into a connected sensor hub.
Modular compliance certification allows the board to be designed into end products without the need for further wireless compliance testing.
Features:
- Quad Core 1.4GHz Broadcom BCM2837B0 64bit CPU
- Dual band 2.4GHz / 5.0GHz wireless
- Bluetooth 4.2/BLE
- Faster Ethernet
- PoE capability via a separate PoE HAT.
- 1GB LPDDR2 SDRAM
- Extended 40-pin GPIO header
- 1GB LPDDR2 SDRAM
- Extended 40-pin GPIO header
- Full-size HDMI
- 4 USB 2.0 ports
Raspberry Pi is a trademark of the Raspberry Pi Foundation
Documentation available from: https://www.raspberrypi.org/documentation/
Downloads including OS images available from: https://www.raspberrypi.org/downloads/
Specifications
| Transmission frequency : 2.4GHz |
| Transmission power : 10.0W |
| Transmission range : 100.0m |
| Transmission standard : WiFi |
| CPU : Quad Core 1.4GHz Broadcom BCM2837BO 64bit CPU Cortex A53 |
| RAM : 1.0GB |
| Video Output : Full size HDMI |
| Network Interface : RJ-45 |
| Operating System : 4 Pole composite video port |
| Analog Audio Output : 4 Pole stereo output |
| Bluetooth Version : V4.0 LOW ENERGY |
| Storage Media Type : microSD |
| External port type : USB Type A |
| External port count : 4.0 ports |
| LAN Standard : 1000 Base T |
| Number of LAN Ports : 1.0 ports |
| Length : 85.0mm |
| Width : 56.0mm |
| Height : 17.0mm |
| USB Voltage Input : 5.0V |
| USB Input Current : 2.0A |
| USB Lead included : false |
| Supported Wi-Fi Modes : 802.11ac |
