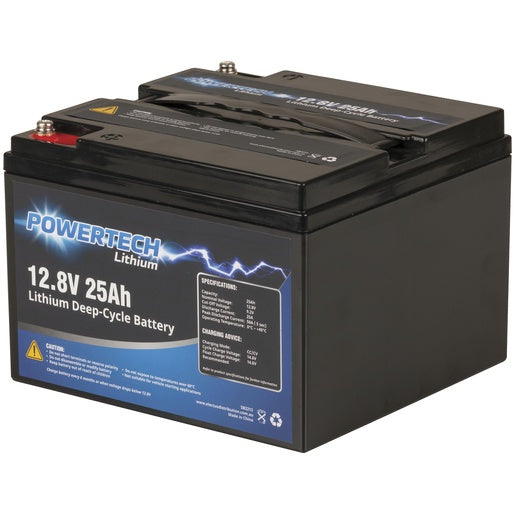

SB2213 - 12.8V 25Ah Lithium Deep Cycle Battery

SB2213 - 12.8V 25Ah Lithium Deep Cycle Battery

Regular price
$299.00
Sale price
$299.00
Regular price
Sold out
Unit price
per
Tax included.

The next generation of power storage is here! These LiFePO4 batteries weigh less than half of their Lead Acid counterparts. They may look fairly similar to lead acid batteries, but internally they’re a totally different, next generation concept. They’re actually made up of regular 32650 LiFePO4 cells, which are in mass production for many portable devices. An internal battery management system (BMS) ensures all cells are uniformly charged and discharged, as well as providing short circuit, over current, and reverse polarity protection. This provides you with a higher degree of protection than a traditional lead acid battery which is unprotected, and can discharge rapidly under short circuit conditions, causing fire and damage. The internal BMS will also limit discharge and manage cut-off voltage, to further protect the internal cells.



This 25Ah model can provide continuous current up to 25A. Absolutely perfect for high capacity portable power, and replacement of similar capacity lead acid / AGM battery.



Features:

- Much lighter than Lead Acid and AGM Batteries

- Robust LiFePO4 Cells

- Excellent life span



Specifications:

Capacity: 25Ah

Service Life: 10yrs+

Cycle Life: 1500+ cycles (> 80% capacity retention)

Nominal Voltage: 12.8V

Cut-Off Voltage: 10V approx.

Charge Type: Constant Current / Constant Voltage

Discharge Current: 25A

Max Continuous Current: ≤50A (≤5 sec)

Internal Cells: 32650 LiFePO4

Maximum Internal Resistance:  85M?

Output Terminals: M5 Bolt Down

Operating Temperature: 0-45°C (60°C max discharging)

Operating Humidity: RH < 85%

Storage Temperature: 0-40°C (15-25°C recommended)

Storage Humidity: RH < 50%
